Case Details
Project Overview
The reverse osmosis (RO) system treats effluent from a wastewater treatment plant - pretreatment through ultrafiltration and reverse osmosis -to provide high-quality boiler make-up water for key process units.Since the project's launched in 2022, all three sets membrane systems across the workshops have been gradually upgraded with KeenSen BW-8040XLFR membrane model. Since the replacement and commissioning of membranes , the RO units have been operating with excellent stability.To date, both the permeate flow and water quality consistently meet the strict requirements of the end user, demonstrating the outstanding performance and reliability of KeenSen membrane.

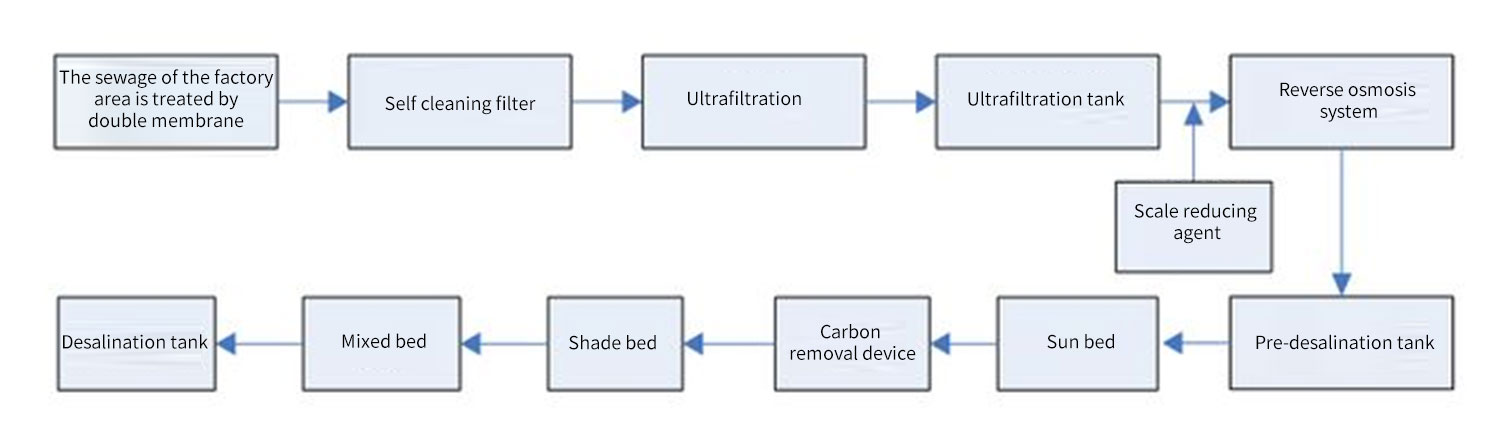

Treatment Process
Project Information
| Model |
Design Flux LMH |
Recovery Rate % |
Operating Pressure MPa |
Salt Rejection Rate % |
Array(Quantity) |
| BW-8040XLFR | 19.2 | 75 | 0.7-0.9 | 98.2 |
40:20 Six-core |
