Case Details
Project Overview
This power plant in Shaoxing uses river water as its source,which is treated through pretreatment, reverse osmosis (RO), and EDI to produce demineralized process water for industrial units.The system has a treatment capacity of 100,000 m³/day.
Since 2021, the plant has adopted membrane products from KeenSen, with nearly 5,000pcs membranes replaced to date. The RO systems have been operating stably, and the current permeate flow and water quality consistently meet the requirements of the owner's requirements.

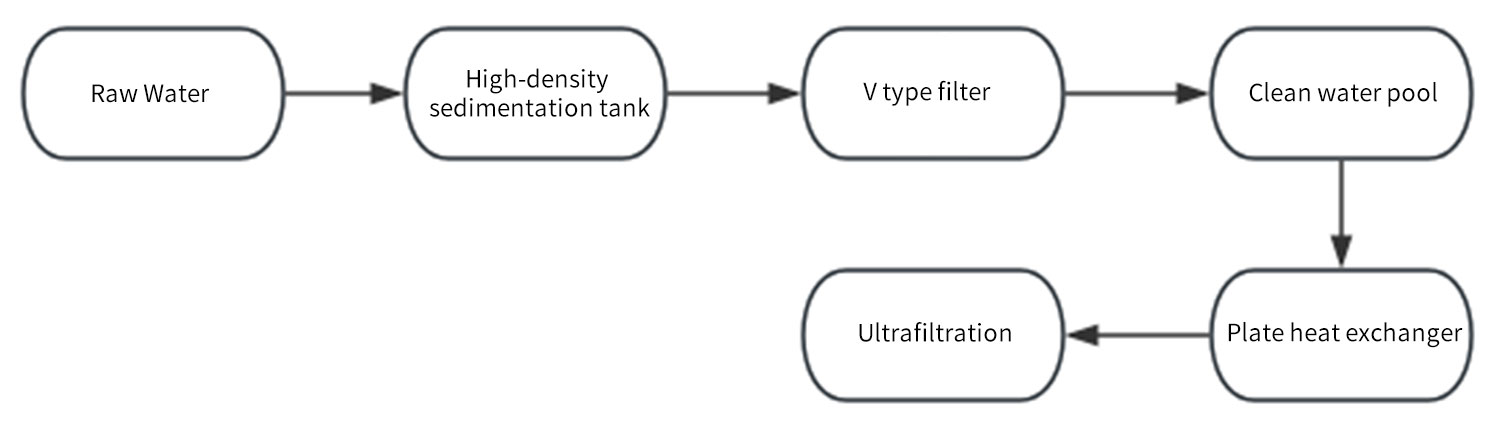

Treatment Process
Project Information
|
Unit |
Model |
Design Flux LMH |
Recovery Rate % |
Operating Pressure MPa |
Product Water Conductivity μS/cm |
Array(Quantity) |
|
Primary |
BW-8040XLFR |
22 |
75% |
0.5-1.0 |
<20 |
30:15 (Six-core) |
|
Secondary |
BW-8040XLFR |
30 |
85% |
1.2-1.5 |
<2 |
23:12 (Six-core) |
|
Concentrate |
BW-8040XLFR |
18 |
60% |
0.9-1.4 |
<20 |
23:12 (Six-core) |
