Desalination water project of a certain steel mill in Sichuan

Previous:

Next:

Case Details


Project Overview

The desalination project uses river water as its source, with a total treatment capacity of 15000 m³/d. In April 2023, the membrane elements of the two reverse osmosis systems in this project were replaced with KeenSen BW-8040FR Fouling-Resistant membrane elements. Since commissioning, the system has been operating stably, and both water production and Rejection Rate meet project requirements.

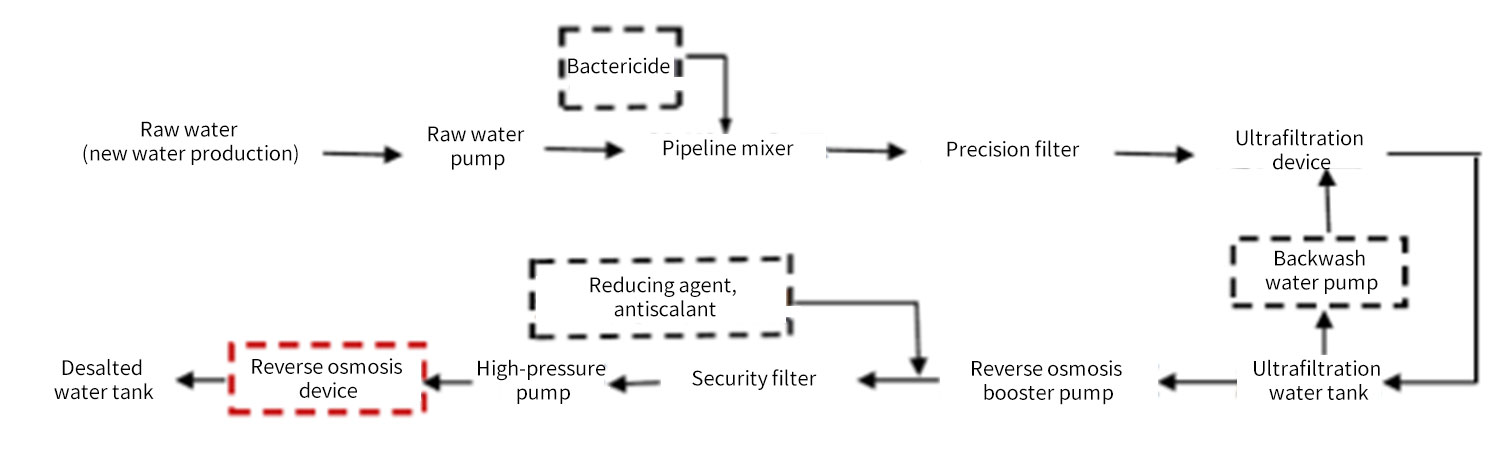

Treatment Process



Project Information

Model

Design Flux

LMH

Recovery Rate

%

Operating Pressure

MPa

Rejection Rate

%

Arrangement (Quantity)
BW-8040FR 25.35 75 0.6-1.0 98.3

22:10

Six-core installation
